Ubiquiti LTU-Pro | 5 GHz 600Mbps+ PtMP LTU Client with advanced RF performance

5 GHz PtMP LTU Client with advanced RF performance, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Features:

PtMP CPE
1024 QAM
10/20/30/40/50 MHz channel bandwidth
Central configuration management from AP side
Frequency split
Automatic power adjustments
Router mode support
Integrated GPS for Synchronization

Functions in a PtMP environment with the LTU-Rocket as the basestation

Overview

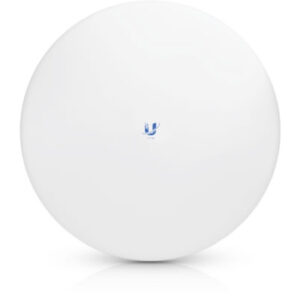

Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz
subscriber station that functions as a CPE (Customer Premises
Equipment) in a PointtoMultiPoint (PtMP) environment with the
LTU Rocket as the basestation.
Proprietary LTU Technology
Based on Ubiquiti’s LTU technology, the LTU Pro is not impeded
by the limitations of standard 802.11 WiFi technology. Its custom
LTU silicon and radio architecture provide up to 600+ Mbps
of real
TCP/IP throughput and modulation rates of up to 4096QAM
.
CPE Modes
The LTU Pro supports both bridged and built-in hardware NAT
router modes to suit your specific deployment.
Frequency Split
The LTU Pro can use different frequencies for TX and RX to avoid
interference.

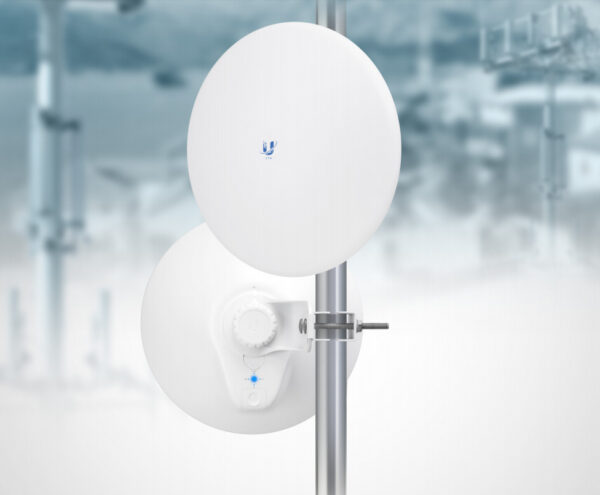

Robust Pole Mount Design
The LTU Pro is designed for quick yet reliable mounting on a pole.
It features a built-in mechanical tilt; the mounting bracket allows
convenient adjustments to the elevation with a range of 15.

Channel Width Flexibility
Channel width flexibility allows independent TX and RX channel
frequency configurations anywhere within the radio band to avoid
local interference. Channel width options include the following:
10 MHz
20 MHz
30 MHz
40 MHz
50 MHz
Up to 100 MHz*

Auto Power Adjustments
By default, the Auto Output Power option allows the LTU Pro to set
the output power (EIRP) to the appropriate level.

Signal Control
The LTU Pro’s TX output power is controlled by the AP’s target
TX output power. A PtMP network can manage signal levels
to enhance network stability and achieve optimal wireless
performance with the highest possible modulation.

Convenient Configuration
To manage the LTU Pro, you have two options: the LTU
Configuration Interface and Ubiquiti Network Management System
(UNMS). Either option lets you manually configure the LTU Pro.
Within the LTU Configuration Interface, you can manually configure
the LTU Pro or manage it from the AP side using the Find My AP
feature. The LTU Pro will automatically scan for APs using the same
channel bandwidth. Select the appropriate AP and then use it to
configure the LTU Pro.

Integrated GPS
Built-in GPS improves synchronization and allows map and Fresnel
views on the Dashboard.
