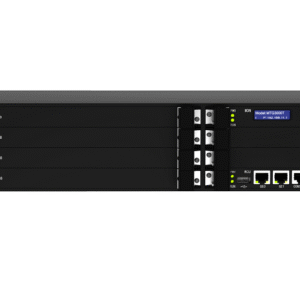

MTG3000T Front 2

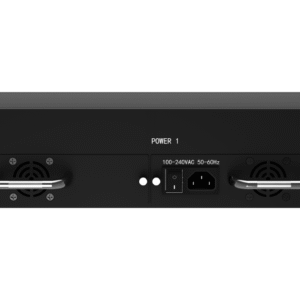

3000T B

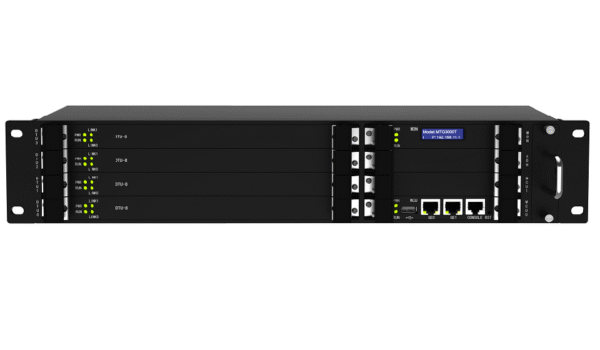

MTG3000T-Front (2)

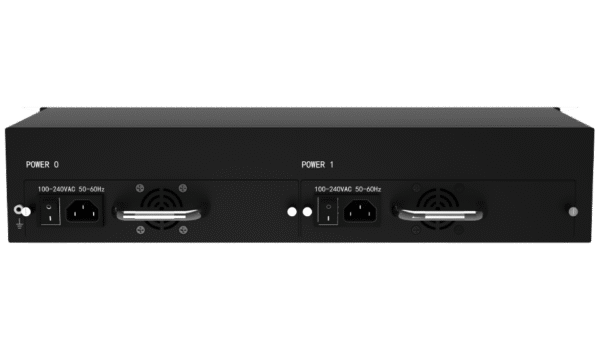

3000T B

DInstar MTG3000T High Density Transcoding Gateway

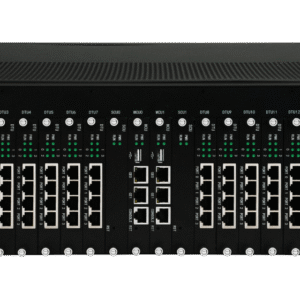

MTG5000 front Dinstar MTG5000 E1 VoIP Gateway
0 out of 5

MTG3000T series is a flexible and high-performance transcoding gateway with up to 1568 transcoding sessions. It converts simultaneous channels of transcoding among a number of popular voice codecs like G.711A/U, G.723.1, G.729A/B, iLBC,G.726 and AMR from IP to IP, bridge differences in capabilities between the telecommunications systems with high reliability.

Request a Quote via WhatsApp
Availability: In stock SKU: MTG3000T Category:



High Capacity Transcoding Gateway

  • Transcoding from IP to IP
  • Up to 2048 VoIP Sessions
  • Dual Power Supplies
  • Scalable by 4 DTUs Boards
  • Multiple SIP Trunks
  • Fully Compatible with Mainstream VoIP Platforms

Rich Experiences on PSTN Protocols

  • 2U Size
  • T.38 and Pass-through fax
  • Support modem and POS machines
  • Flexible dialling rules, thus adapting to different requirements of different environments.
  • More than 10-year experiences to integrate with a wide range of Legacy PBXs/Service providers’ PSTN networks

Easy Management

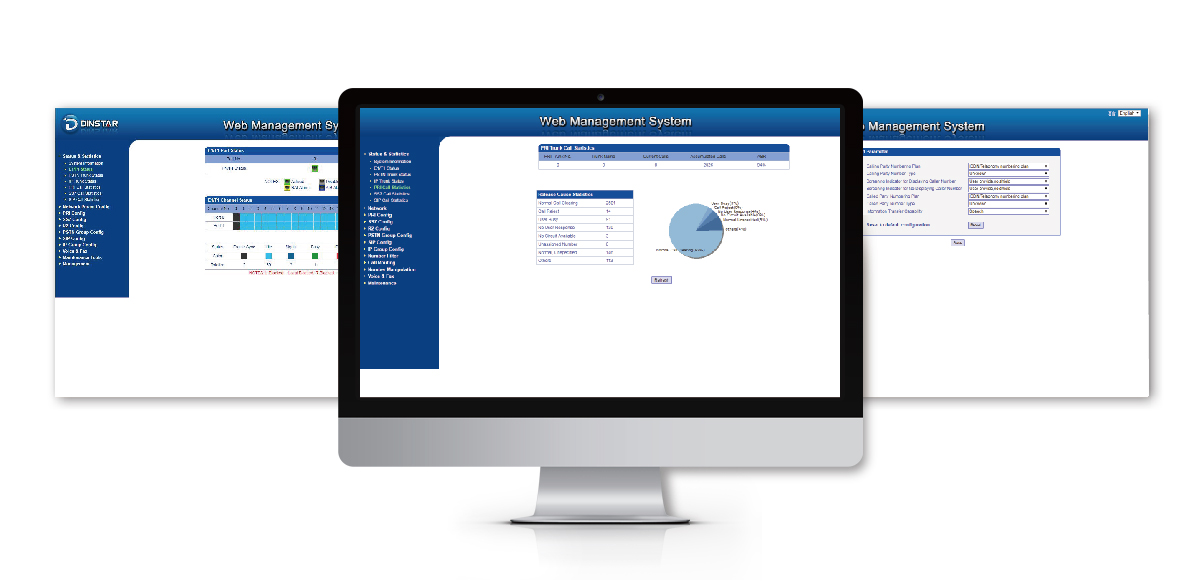

pro de104



  • Intuitive Web interface
  • Support SNMP
  • Automated provisioning
  • Dinstar Cloud Management System
  • Configuration Backup & Restore
  • Advanced Debug tools
  • Up to 4 Digital Processing Unit (DTU)
  • SIP Trunk Groups
  • 2 GE ports
  • 256 SIP trunks
  • Redundant Power Supply
  • Outbound Proxy supported
  • G.711—G.711: 2048 sessions
  • Maximum 256 SIP accounts
  • G.711—G.729: 1568 sessions
  • Cloud based management system
  • G.711—G.723: 1344 sessions
  • Web GUI management
  • G.711—G.726: 2048 sessions
  • SNMP
  • G.711—iLBC: 960 sessions
  • Firmware Upgrade via TFTP/FTP/HTTP
  • G.711— AMR: 832 sessions
  • Support configuration backup/restore
  • G.723—G.729: 896 sessions
  • Local maintenance via console
  • SIP, SIP-T
  • Call trace/syslog
  • SIP Trunk Work Mode: Peer/Access
  • Call test
  • SIP/IMS Registration: with up to 256 SIP Accounts
  • Network capture
  • NAT: Dynamic NAT, Rport
  • Signaling hunter
  • Caller/Called Number Black lists
  • Voice codecs: G.711a/μ law,G.723.1,G.729A/B, iLBC, AMR
  • Caller/Called Number White lists
  • FAX: T.38 and Pass-through
  • IP access rule list
  • Support Modem/POS
